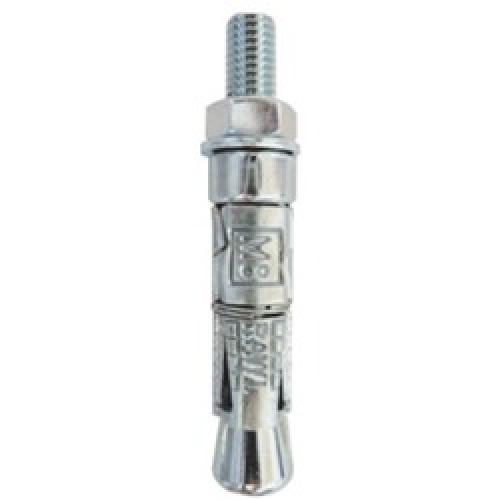

M6 x 25 P RAWLBOLT REF:44-510

Product Code: RBPM06025

World's most popular expanding shield anchor. Easy to use with good load carrying capacity.
Provides a projecting stud to support fixture during installation and removal.
Suitable for use in concrete, brickwork & stone.
Pressed steel segments ensure consistent dimensional accuracy.
Optimum taper nut angle for optimum expansion in all recommended substrates
Ferrule marked with hole diameter to ensure correct installation.

• Zinc Plated Steel
• 25mm maximum fixture thickness
• 12mm hole diameter in substrate
• 50mm minimum hole depth
