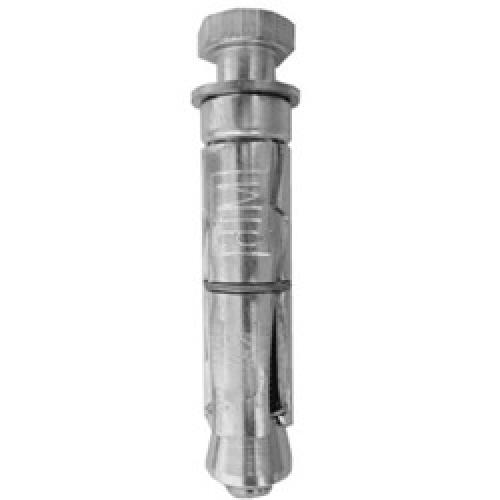

M24 X 150 L RAWLBOLT REF:44-310

Product Code: RBLM24150

World's most popular expanding shield anchor. Loose bolt type.
Suitable for use in concrete, brickwork & stone.
Pressed steel segments ensure consistent dimensional accuracy.
Optimum taper nut angle for optimum expansion in all recommended substrates
Ferrule marked with hole diameter to ensure correct installation.

• Zinc Plated Steel
• 150mm maximum fixture thickness
• 38mm hole diameter in substrate
• 160mm minimum hole depth
